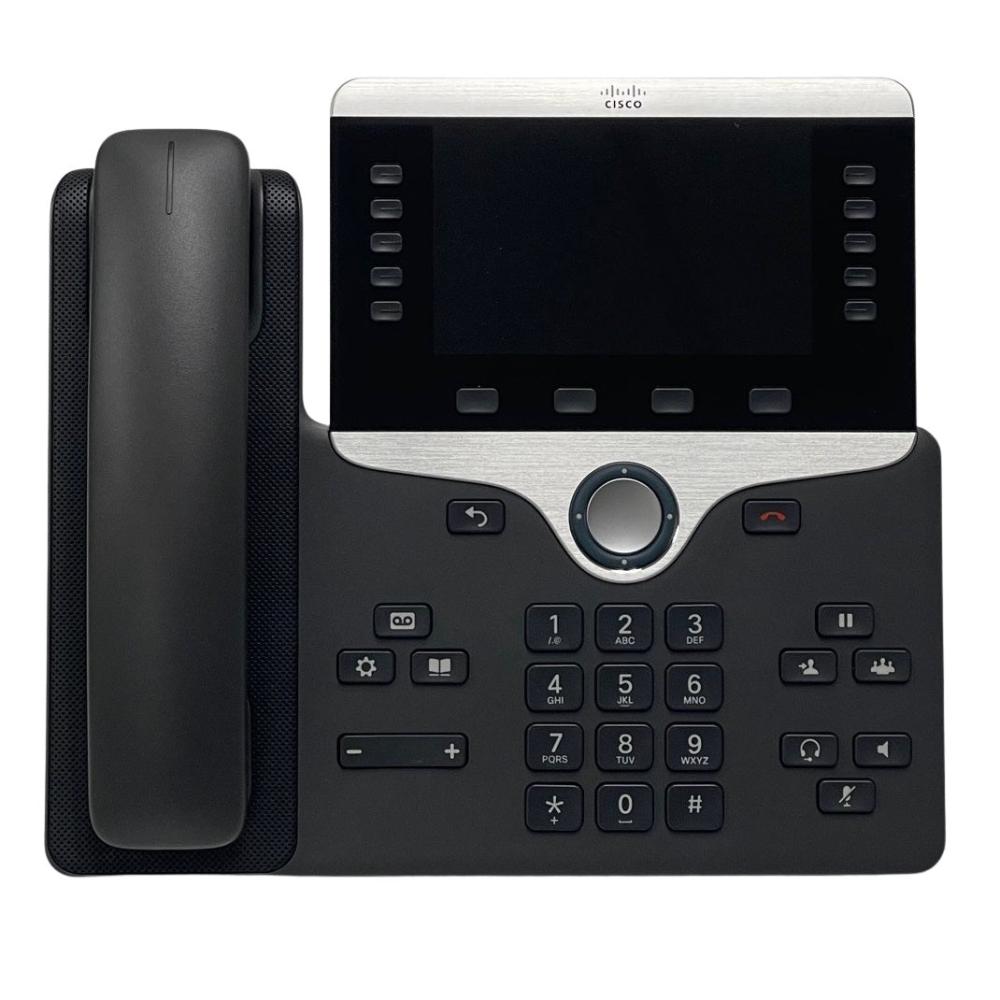

The Cisco 8861-3PCC is an Open-SIP IP phone designed to work with 3^rd party control platforms. The Cisco 8861-3PCC IP Phone delivers high-fidelity, reliable, secure, and scalable voice communication for small to large enterprise businesses. The Cisco 8861-3PCC combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communication features. The Cisco 8861-3PCC is ideal for knowledge workers, remote workers, managers, and executives across industries and businesses of all sizes.

Features

• Display: 5-inch, high-resolution (800 x 480 pixels) widescreen VGA backlit color display
• Call Appearance: Five voice lines
• Fixed Feature Buttons: Messaging, Application, Directory, Hold/Resume, Transfer, Conference, Back, Speakerphone, Headset, Mute, Volume
• Navigation Keys:  Four-way navigation and select keys
• Programmable Line/Feature Keys: 5 programmable keys that support either lines (such as directory numbers), or call features (such as speed dialing).
• Programmable Softkeys: 4 buttons
• Button Module Expansion: Yes, supports the Cisco CP-BEKEM-3PCC= or the Cisco CP-8800-A-KEM-3PC= Expansion Modules for additional programmable line/feature keys.
• Bluetooth: Supports Bluetooth 3.0 Enhanced Data Rate (EDR) Class 1 Technology for coverage of up to 66-fee
• WiFi: As an alternative to wired Ethernet, the Cisco IP Phone 8861 supports a Wi-Fi radio with integrated antenna enabling connectivity to a Wi-Fi access-point infrastructure
• USB: A side USB port enhances the usability of call handling by enabling wired or wireless headsets, as well as provides up to 500-mA power output at 5V or 2.5W for smartphone charging.
• Speakerphone: Includes high-quality, 2-way speakerphone
• Audio: Wideband audio enhances clarity with the handset, speaker, or headset
• Wall-Mountable: Yes, requires optional Cisco 8800 Series Wall Mount Kit (CP-8800-WMK=)
• Ethernet Connectivity: Dual Gigabit Ethernet (10/100/1000) line interface (PC Pass Through & Network Connection)
• Headset Port: Supports wired, USB and Bluetooth headsets
• Message Waiting Indicator: Yes
• Adjustable Tilt Display: No
• Network Security: Secure boot, Device authentication, Configuration file authentication and encryption, Certificate Authority Proxy Function (CAPF), Signaling authentication and encryption using TLS, Media authentication and encryption using SRTP, HTTPS for client and server, Secure Shell (SSH) Protocol server, SSL-based VPN client
• Global Support: Uses Icon keys and supports multiple languages

Power Requirements

• Supports 802.3af Power-over-ethernet (PoE)
• Can also be powered via optional power adapter if PoE is not available on your network (power supply sold separately – see optional accessories)

System Compatibility

• Asterisk - Interoperability Tested – Release (1.8+)
• Broadcloud - Interoperability Tested and Certified
• Broadsoft Broadworks - Interoperability Tested and Certified – Releases 19sp1, 20sp1, 21sp1, 22sp1
• Centile - Interoperability Tested and Certified – Release Istra SP 9.2
• Metaswitch - Interoperability Tested and Certified – Release 9.3
• Compatible with a wide variety of open source PBX systems or Hosted Cloud Solutions (Cisco Webex, Vonage Business, Ring Central, Nextiva, 8x8, etc)
• Check with your VoIP service provider for compatibility confirmation

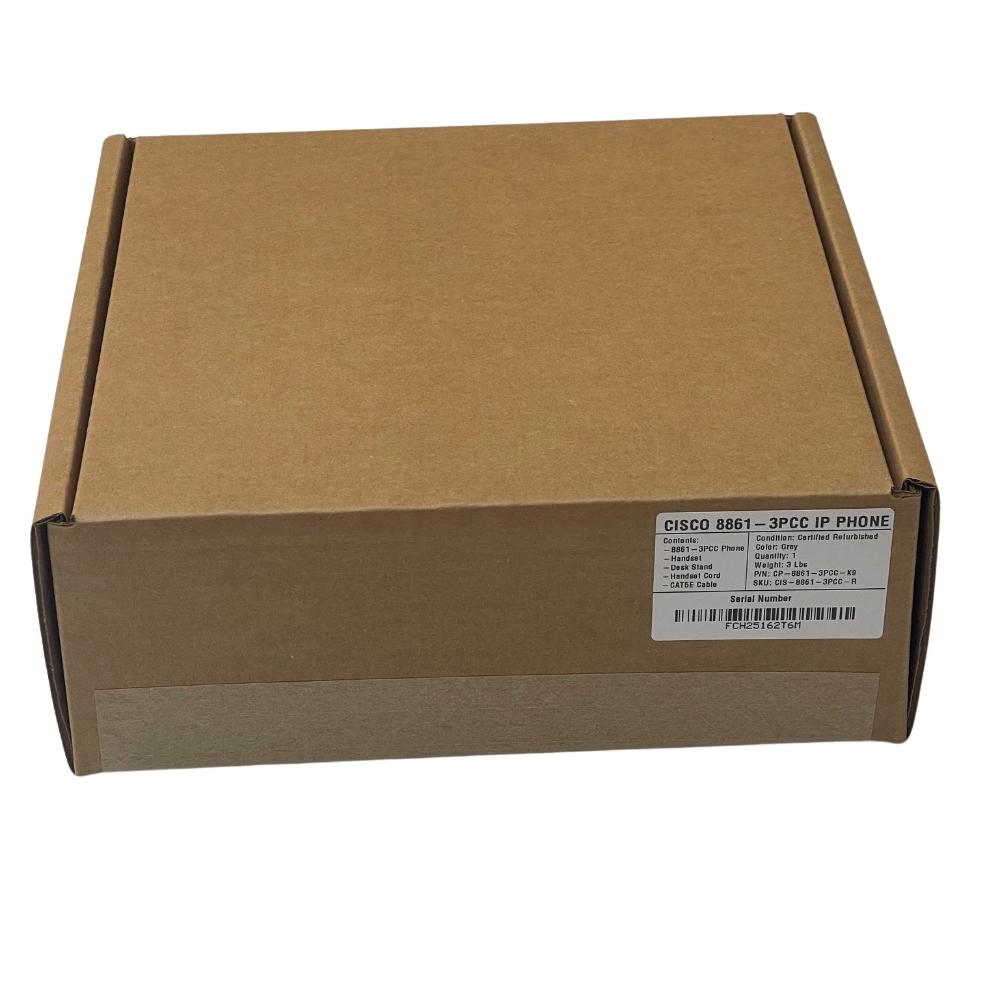

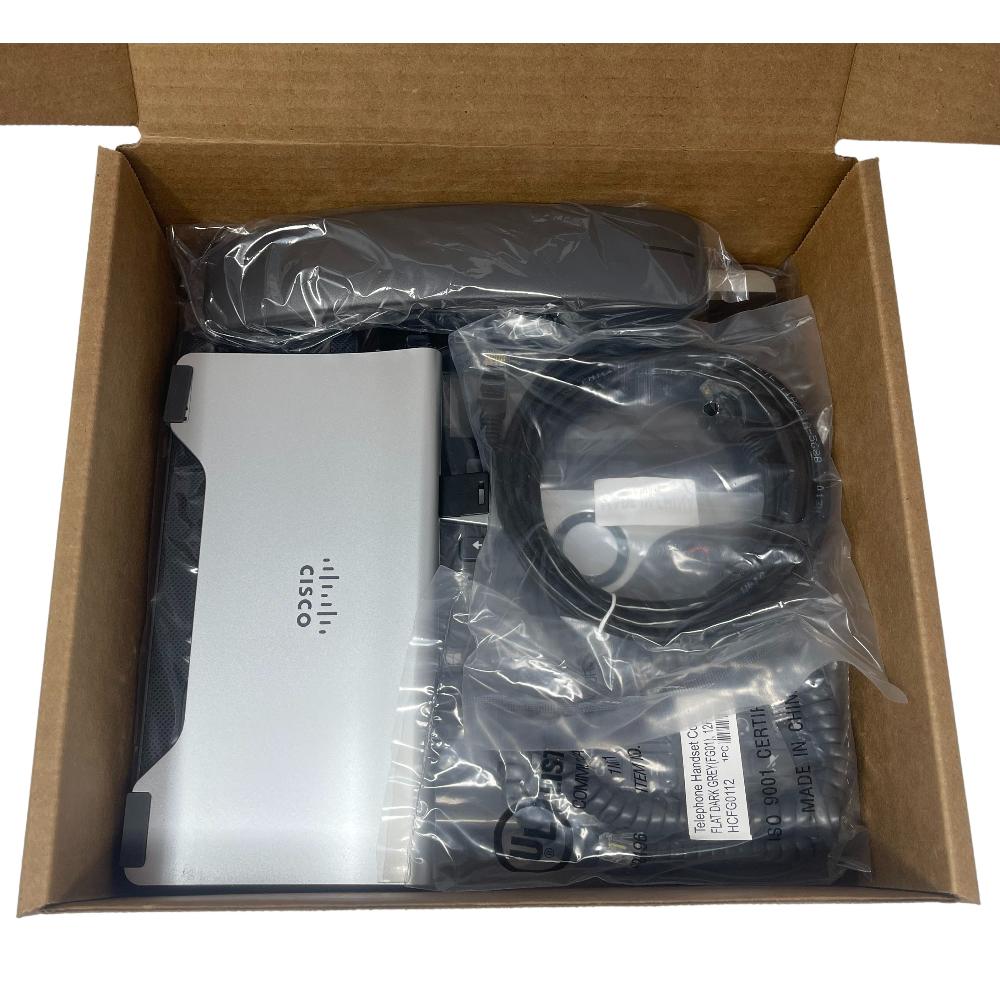

Package Contents

• 8861-3PCC IP Phone

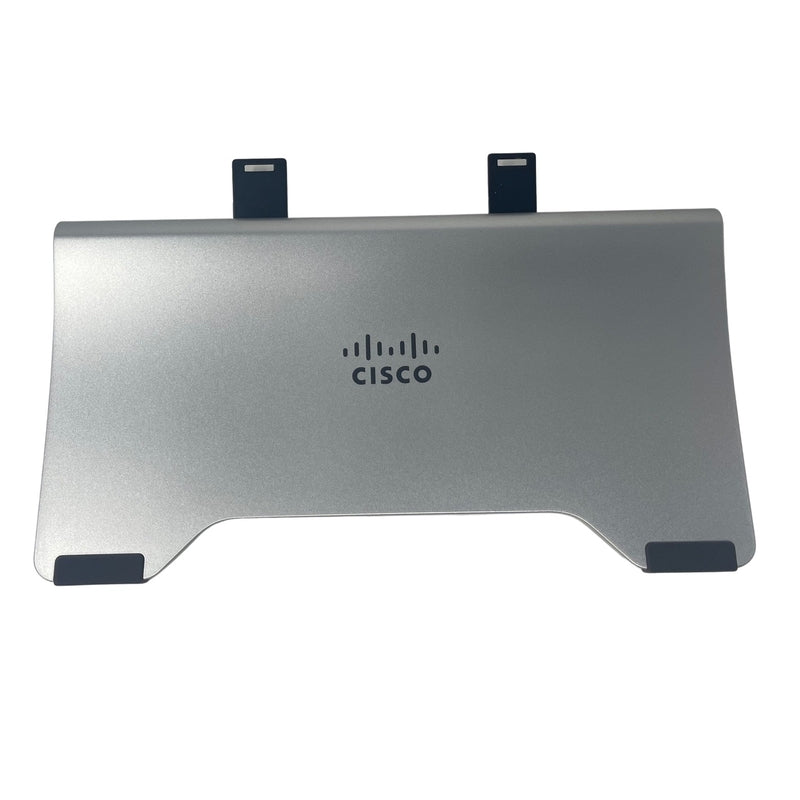

• Desk Stand

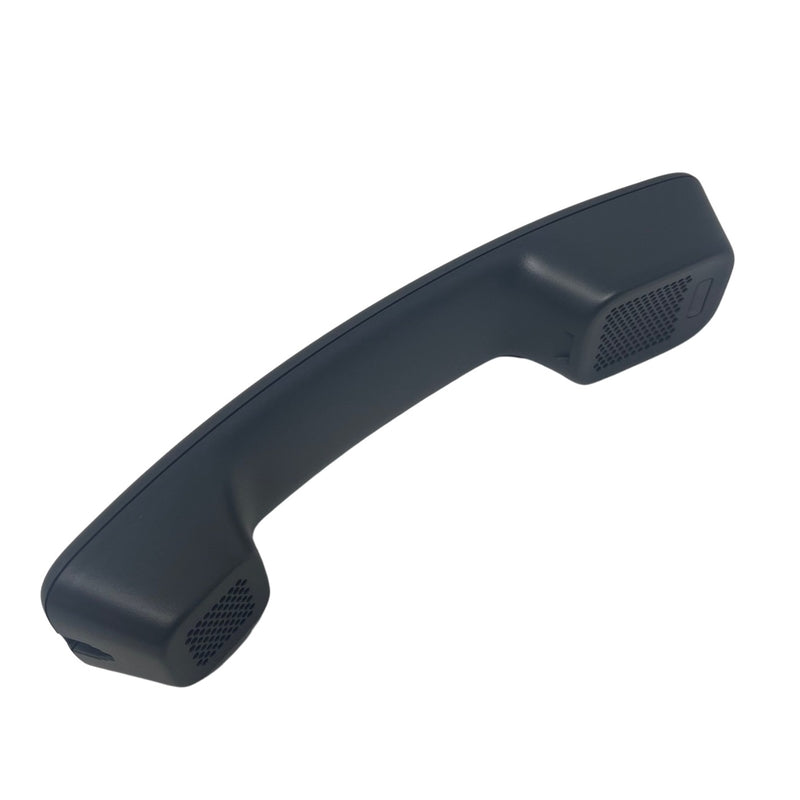

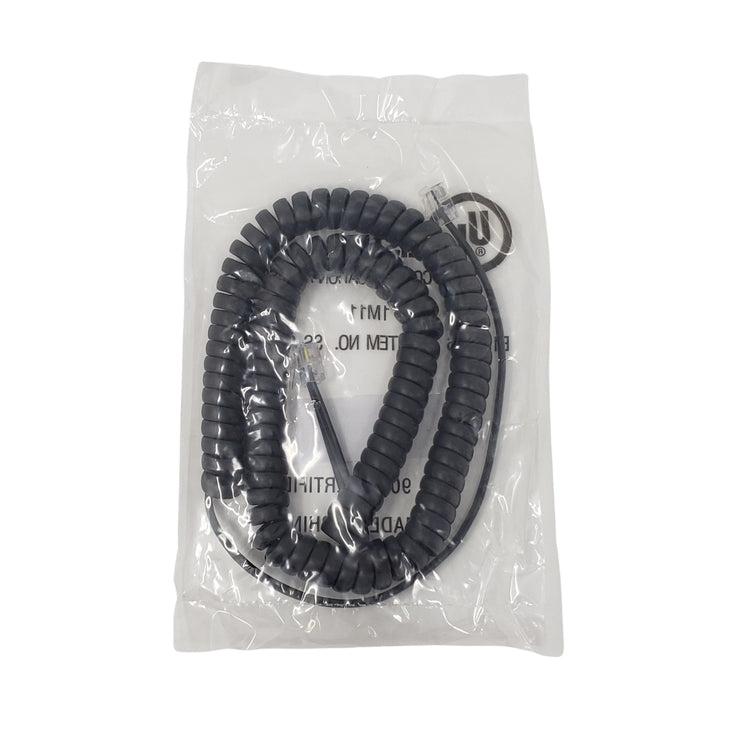

• Handset with cord

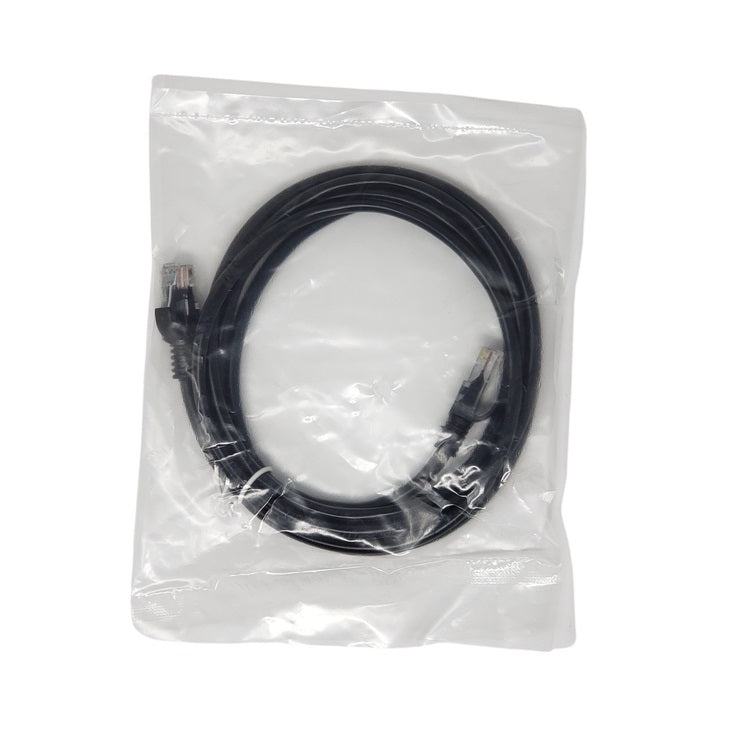

• Network Cable

Download Links

• Cisco 8861-3PCC Datasheet
